Project & Field Photos

A look at the systems, environments, and technical work behind the scenes.

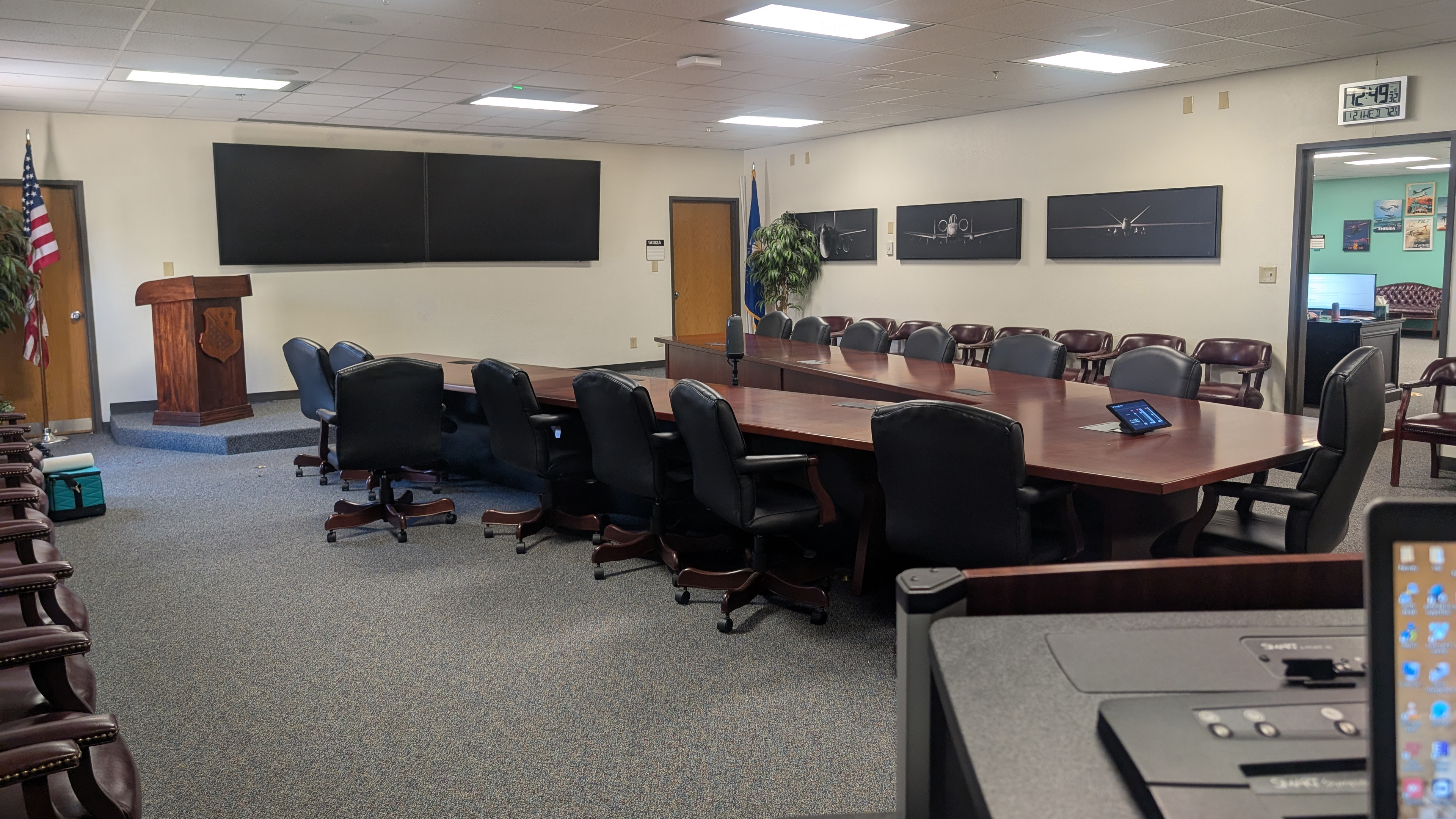

Executive Conference Space 2 75" monitors, desk wired for 16 monitors (2 content choices), Q-Sys room control, ceiling mic, Owl Labs conference cam/mic in the camera role.

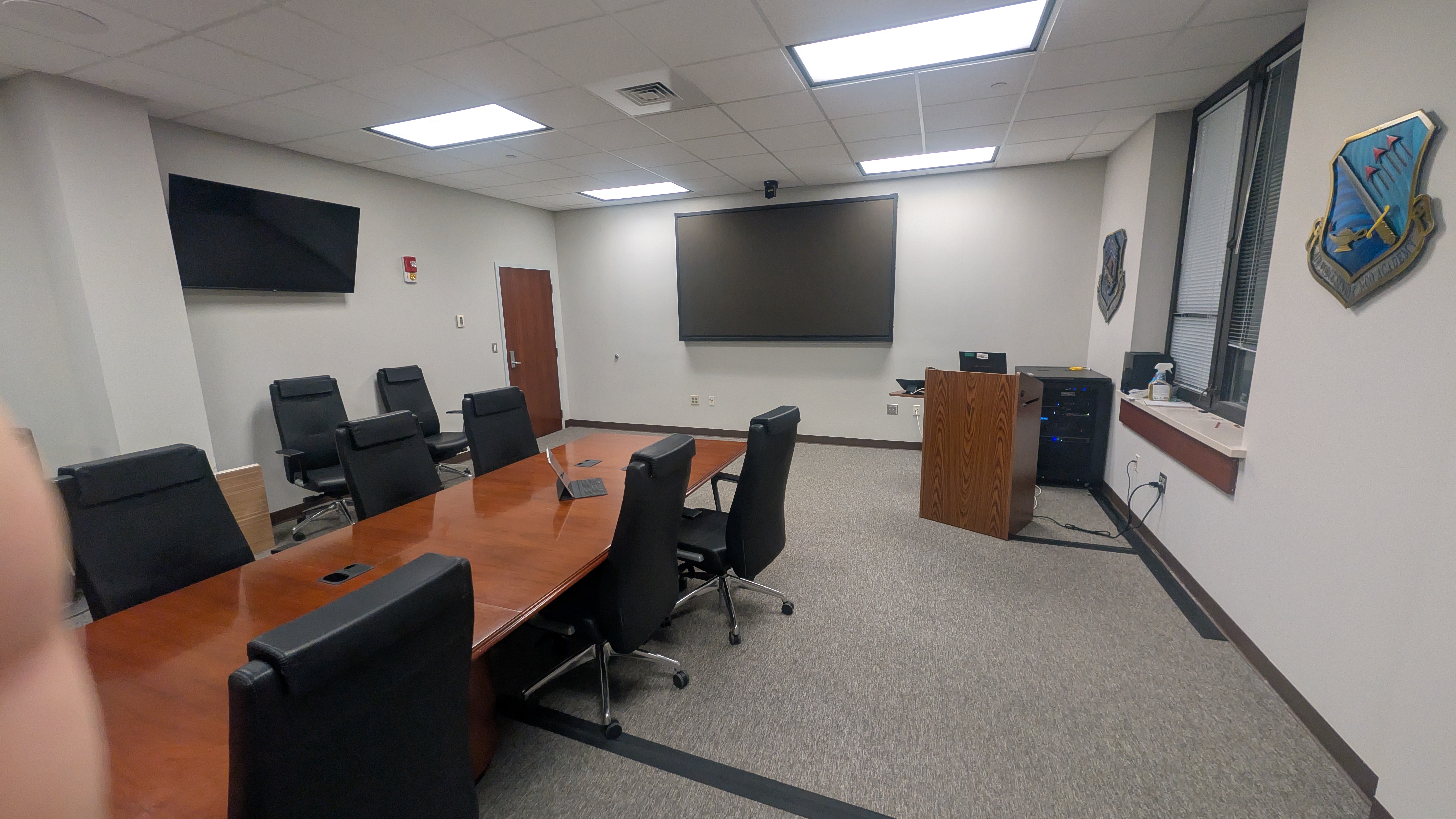

Small Conference Space - LED Video Wall 96"x54" LED video display, wall-mounted. Ceiling mic, multi-camera, with lighting control, and wireless control interface. Q-Sys room control.

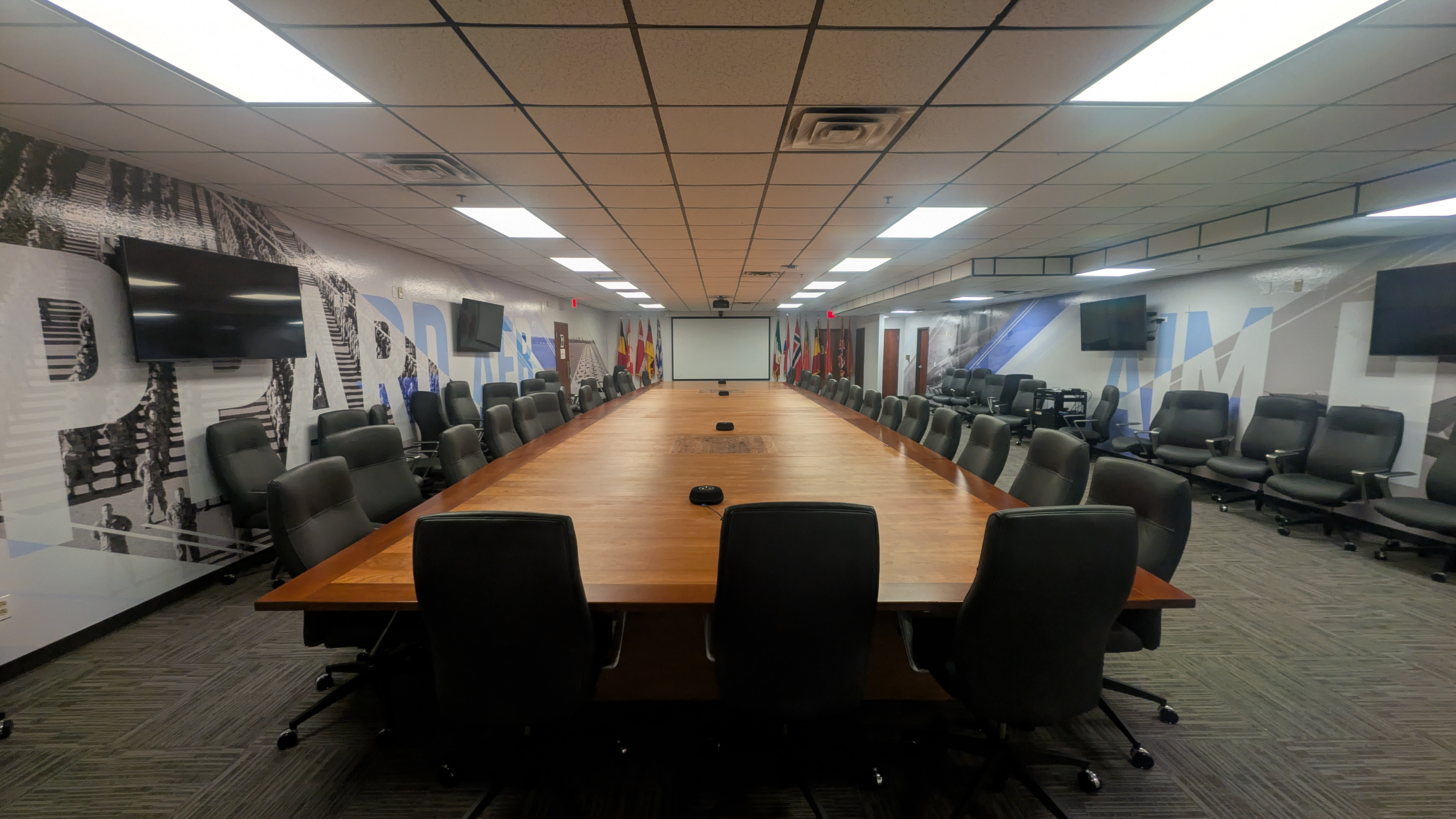

Large Conference Space Great example of how plug-and-play simplicity can still cater to a big need. This space has no A/V controls: Atlona video splitting, Stem Audio tabletop speaker/mic combo units. Host PC connections are USB for sound and mic, USB3 for PTZ camera, and HDMI out, supplying projector, 4 wall-mounted, articulating 55" LCDs, and one 98" LCD. The system is simple, and effective.

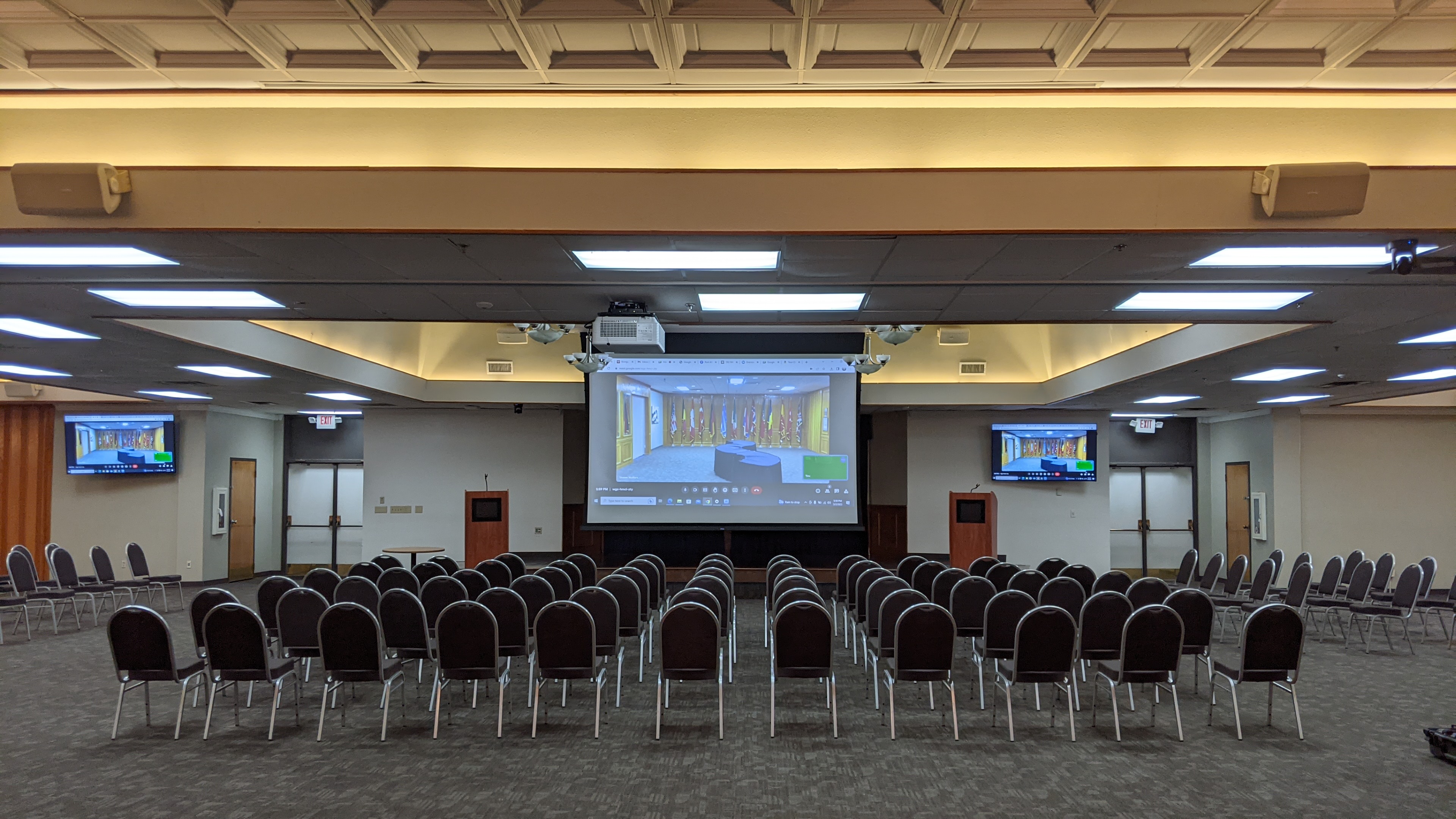

Medium Presentation Space "Modular" presentation facility. Four spaces with the ability for each to host independent or common content. Multiple configurations.

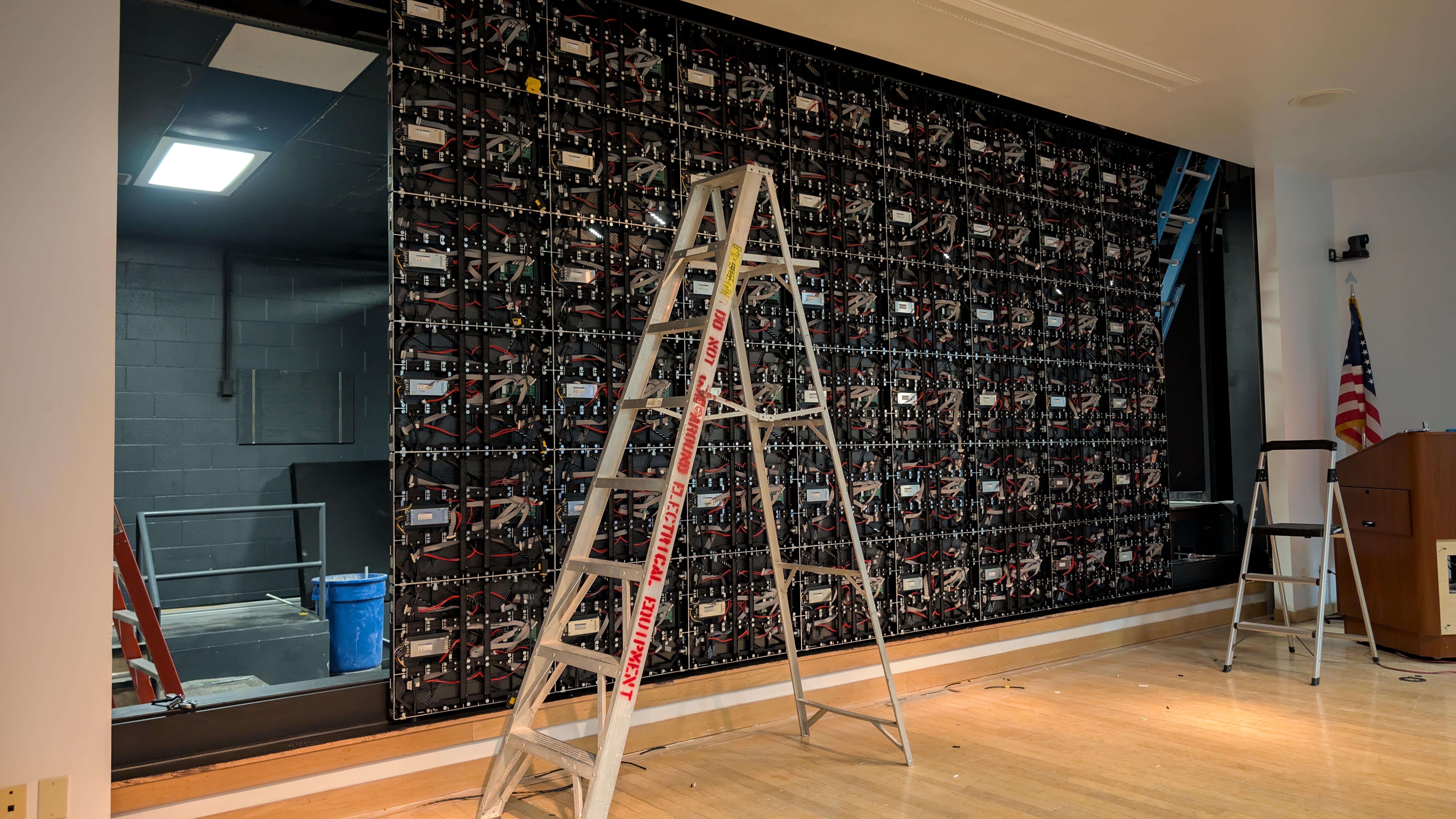

Medium Presentation Space - LED Video Wall (in Progress) AV capacity of theater proportions. 16'x9' suspended display wall, 2x EAW AC6 loudspeakers, 2x EAW SBX112, 2x confidence monitors, with Q-Sys room control

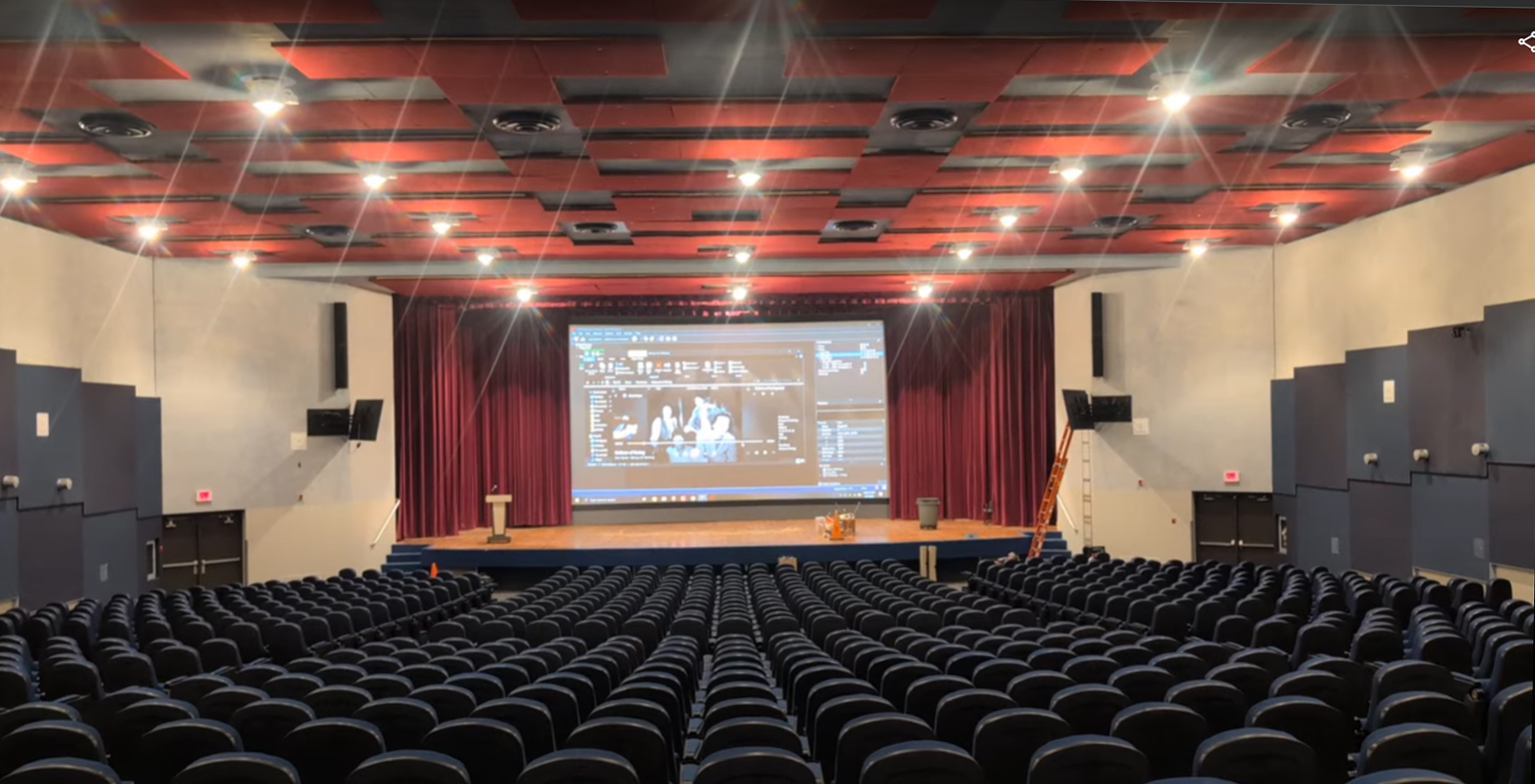

Large Presentation Space - Projection Theater installation. 4x EAW AC6 loudspeakers, 1x SBX212 dual subwoofer, redundant projection, multicamera. Screen is 40' x 17'

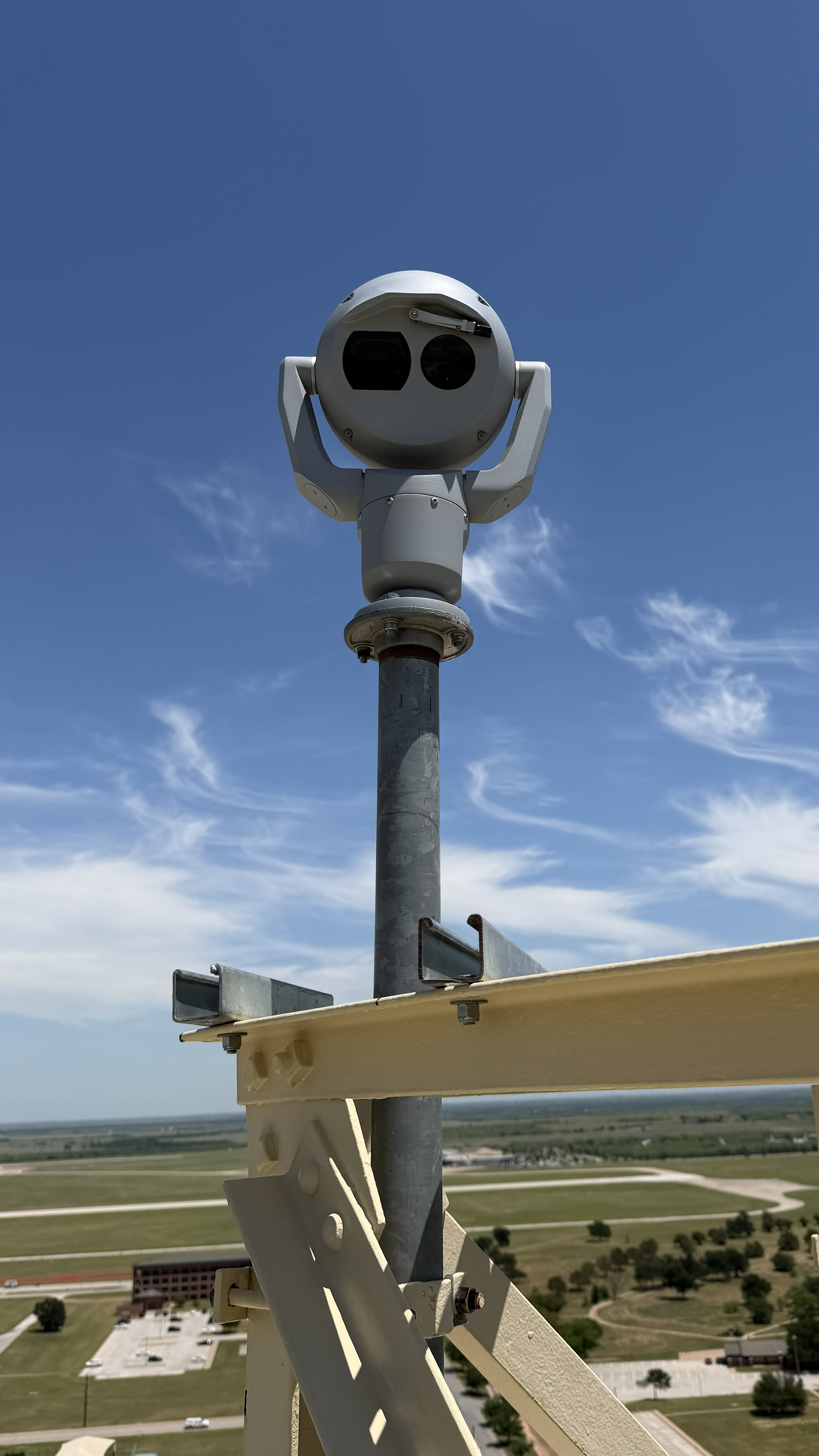

Tower Surveillance Camera High-performance, all-weather PTZ surveillance cam, 640 thermal sensor, 30x optical / 12x digital zoom. 300' mounting height.

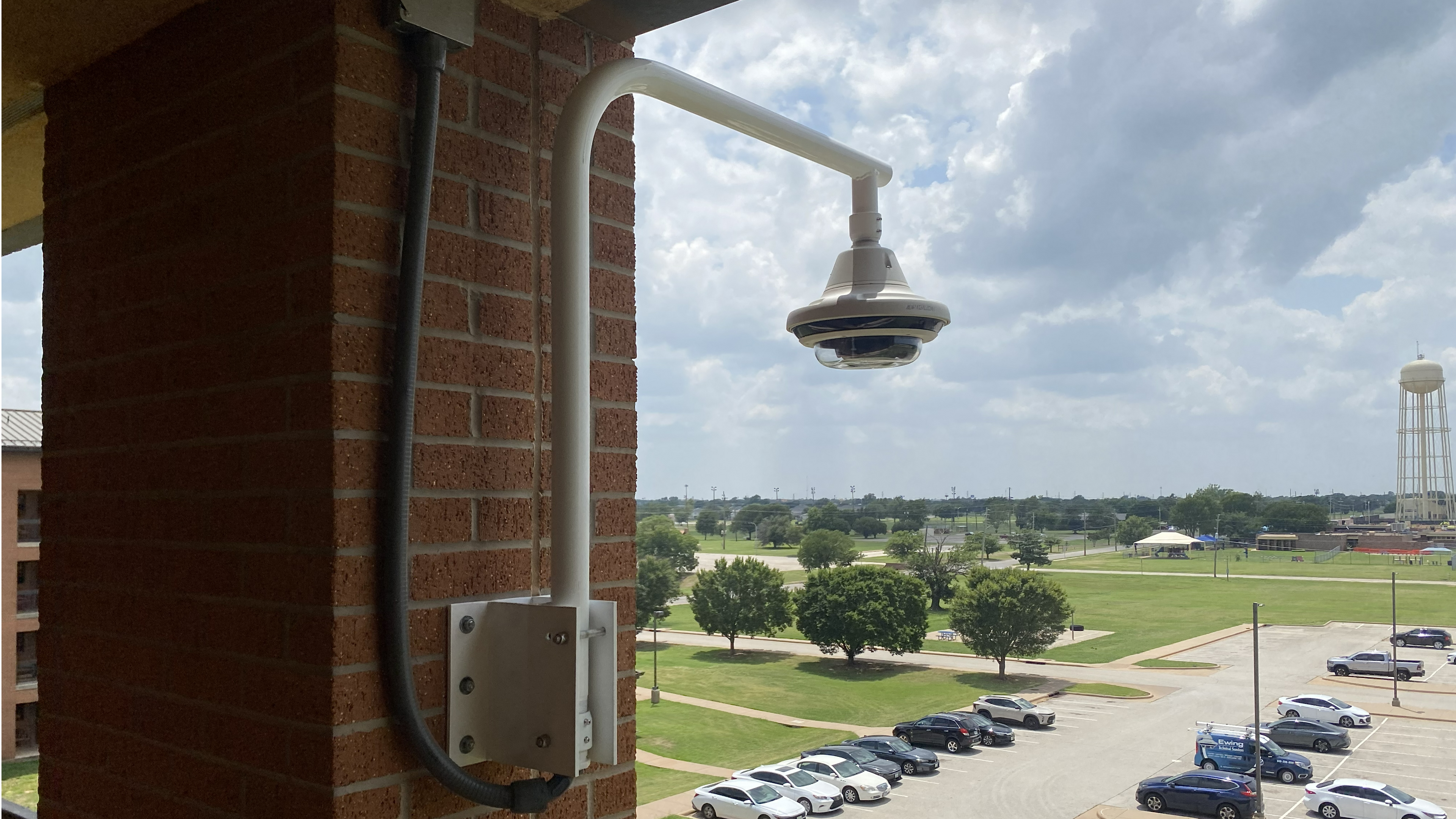

180° Triple-Lens Parapet An economical approach to wide-area coverage: Avigilon multi-sensor cam with service-friendly mounting. Broad coverage without the limited view and increased cost of PTZ cams. No need for 'touring' - plug, point, & view.

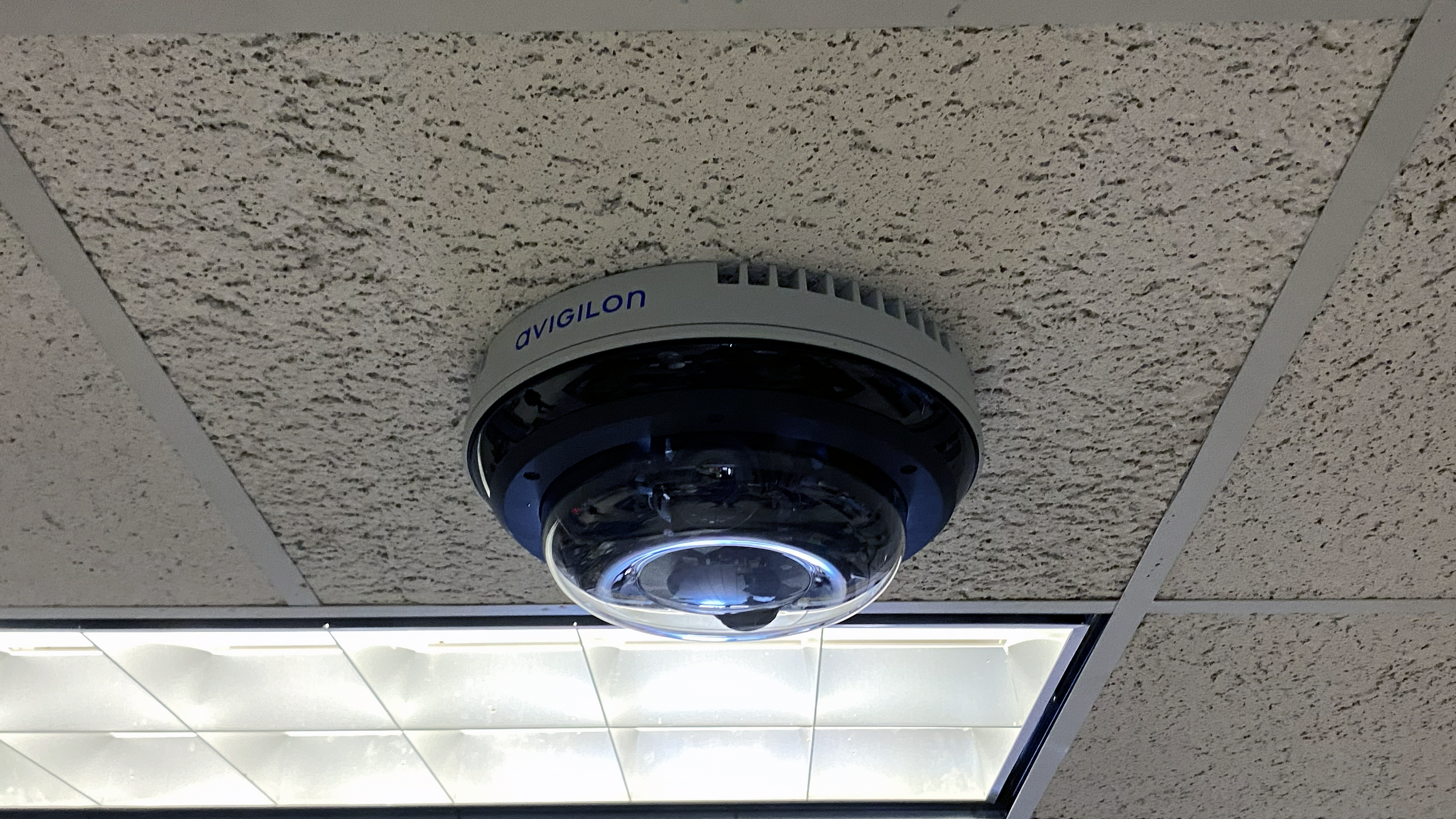

360° Quad-Lens Ceiling Mount Full-room viewing capacity for a single license seat: Avigilon multi-sensor. Deployed with drop-in ceiling tiles, for ease of relocation and maintenance.

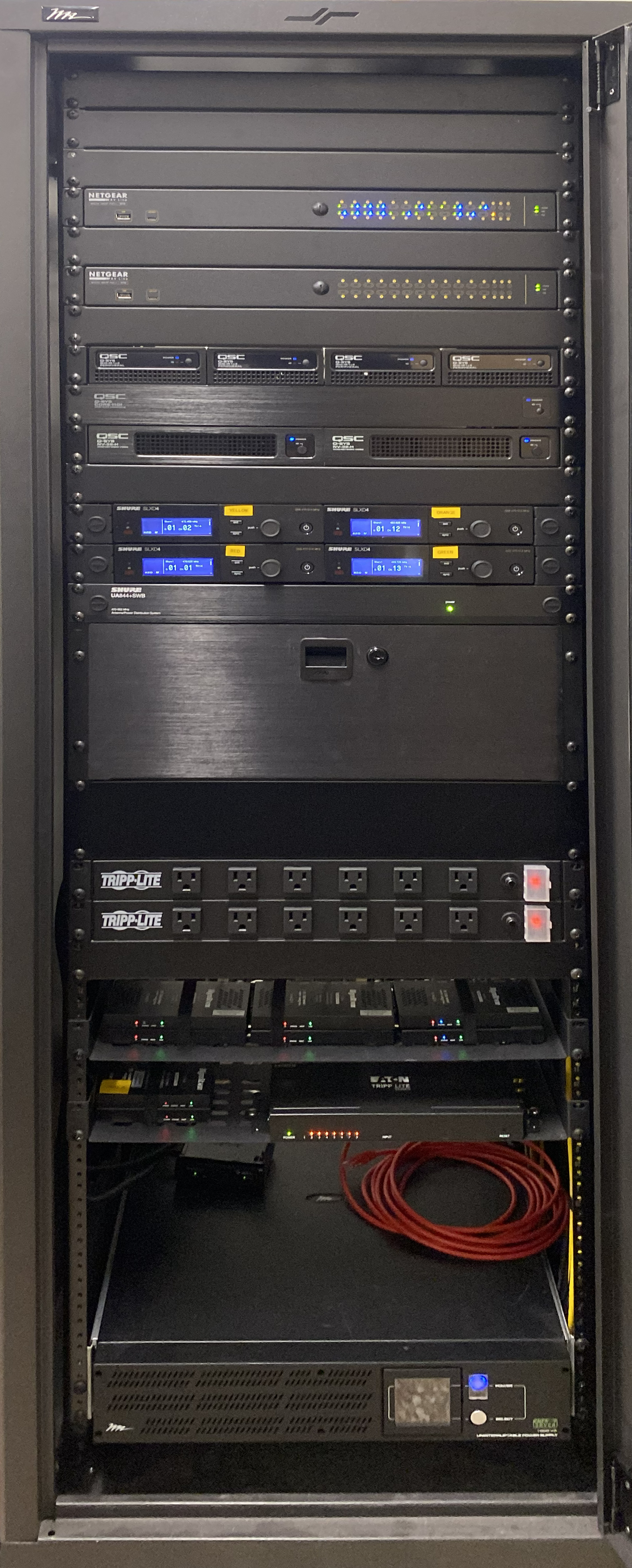

Q-Sys Controlled A/V Rack Control rack for large presentations - QSC Q-Sys controlled.

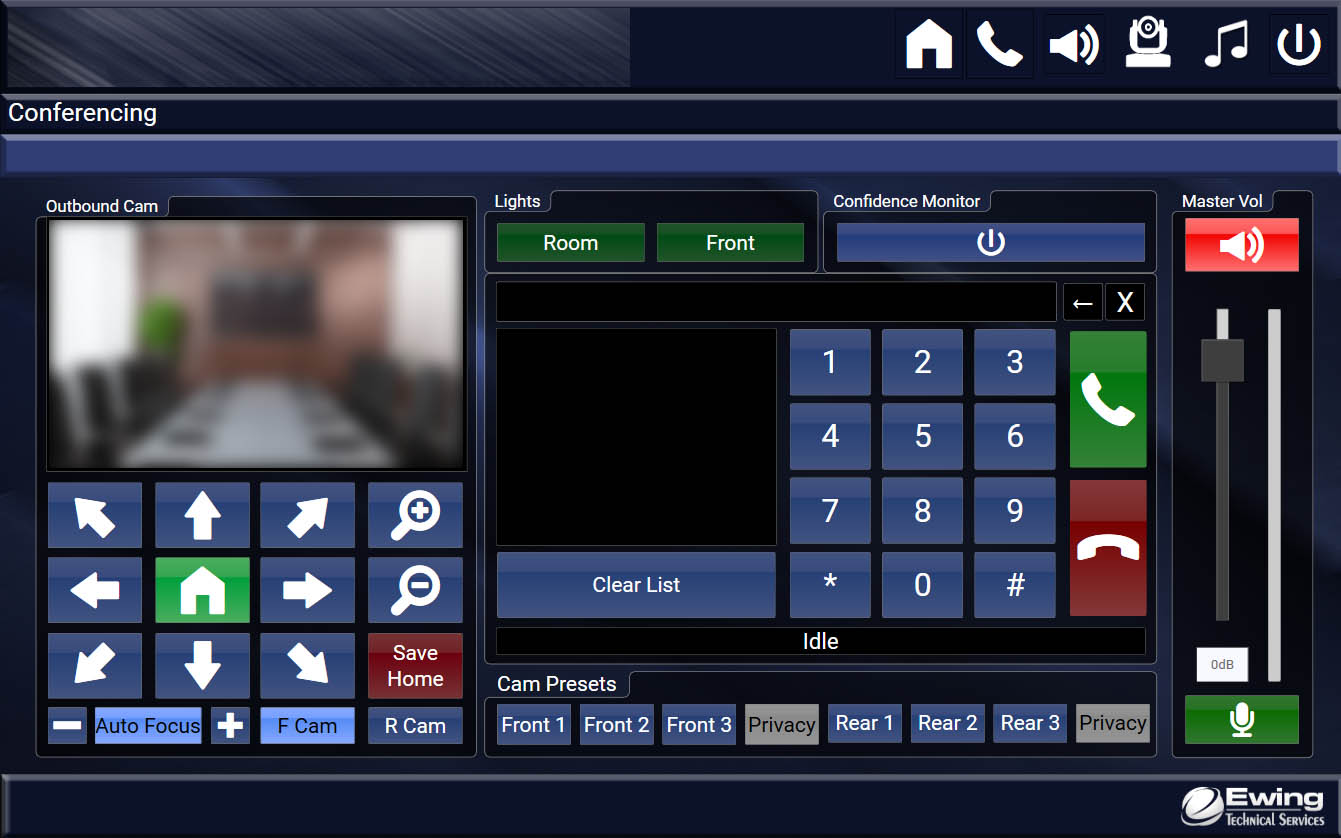

Q-Sys Room Control Panel Every Q-Sys room control system is custom-designed. This example is the home screen for a small conference space. The design integrates multi-camera PTZ control (with presets and privacy mode), POTS telephone dialer, confidence monitor power/input, and 4 channel room lighting control, in addition to room volume and speakers/mic muting. This particular design uses automatic switching between HDMI video + USB-A audio, or USB-C audio + video input types, for compatibility across a wide range of laptops, tablets, and cellular phones.
